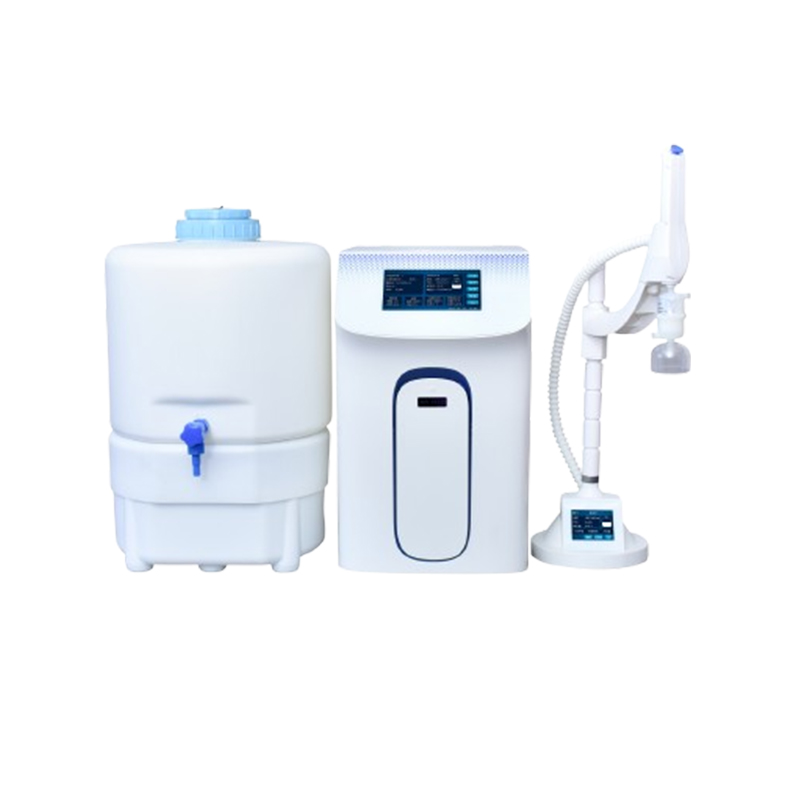

Smartplus-NE Series Ultrapure Water System

The Smartplus-NE series represents our premium water purification solution designed for demanding laboratory applications. When your research demands exceptional water quality, our systems deliver unmatched performance. With consistent ultrapure water output at 18.2MΩ.cm and powered by cutting-edge technology, the Smartplus-NE series ensures reliable operation and precise results, allowing researchers to focus on their critical work without interruption.

Typical Applications

  • ICP-MS(Inductively Coupled Plasma Mass Spectrometry)
  • Molecular biology techniques
  • Ultra trace analysis
  • Electrochemistry
  • Electrophoresis
  • GFAAS(Graphite Furnace Atomic Absorption Spectrophotometry)
  • HPLC
  • IC(lon Chromatography)
  • ICP-AES(Inductively Coupled Plasma Atomic Emission Spectrometry)
  • Mammalian and bacterial cell culture
  • Molecular biology
  • Plant tissue culture
  • Qualitative analysis

Description

1. Advanced Design & Construction
• Premium ABS construction with corrosion-resistant properties
• Streamlined design with water-electricity separation for enhanced safety
• Easy maintenance with quick-access consumable replacement

2. Intelligent Control System
• 7-inch HD color touchscreen interface
• RFID-enabled consumables management
• Superior Water Dispensing System
• Real-time parameter monitoring and display
• Remote control capability via RS232 interface
• Flexible remote dispenser with 3-meter reach

3. Smart Dispensing Handle
• 360° rotation capability
• Three-level adjustable flow rates
• Real-time quality parameter display
• Optional Bio-final filter for endotoxin, RNase & DNase removal

4. Advanced Purification Technology
• Dual-column pretreatment system with high quality activated carbon
• High-performance DOW RO membrane with auto-flush function
• EDI module for continuous high-purity water production
• Ultrafiltration system with automatic flush design

5. Innovative Storage Solution
• PE construction water tank for optimal water quality
• Anti-microbial cylindrical design
• Automated level control system
• One-touch sanitization function for entire system

6. Water Quality Assurance
• Automatic and continuous water quality monitoring
• Dual-wavelength UV system with TOC monitoring
• Multi-channel resistivity sensor (0.01 constant) with temperature compensation

Specifications

ModelSmartplus-NE
Feed Water Requirement
SourceTap water
Conductivity*<2000us/cm
Hardness**<450ppm as CaCO3
Pressure0.05-0.5MPa(7-72psi)
Temperature5-40 ℃
Pure Water(Class IlI)
lonic Rejection>95%
Bacteria Rejection>99%
Conductivity1-20us/cm
Productivity Rate30L/h
High Purified Water(Class Il)
Resistivity At 25℃10MΩ.cm
TOC<30ppb
Dissolved Organic<0.1ppm
Productivity Rate15L/h
Ultrapurification Water(Class I)
Resistivity At 25℃18.2MΩ.cm
Conductivity At 25℃0.055us/cm
TOC Level***1-5ppb
Endotoxin(Pyrogens)****<0.001EU/ml
Particulate(≥0.02um)<1pc/ml
Bacteria***<0.01CFU/ml
Rnase/Dnase**Free
Manual Dispense Flow Rate1.5-2.0L/min
Automatic Dispense Volume100-60000ml
Electrical Requirements
Electrical Voltage110V/220V±10%
Electrical Frequency50HZ/60HZ
External Dimensions(WxDxH)
Main units315*525*570mm
Water tank (100L)550*480*550mm
Others
Remote Water Dispenser6pcs
*If feed water quality in poor(Conductivity>1000us/cm), strengthened pretreatment module and RO-2 type is highly
recommended;
**When hardness of feed water is high(>450ppm as CaCO3), 0.5T water soften is recommended;
***Dual wave UV module need to be adopted. Also dependent on feed water, recommended feed TOC<30ppb;
