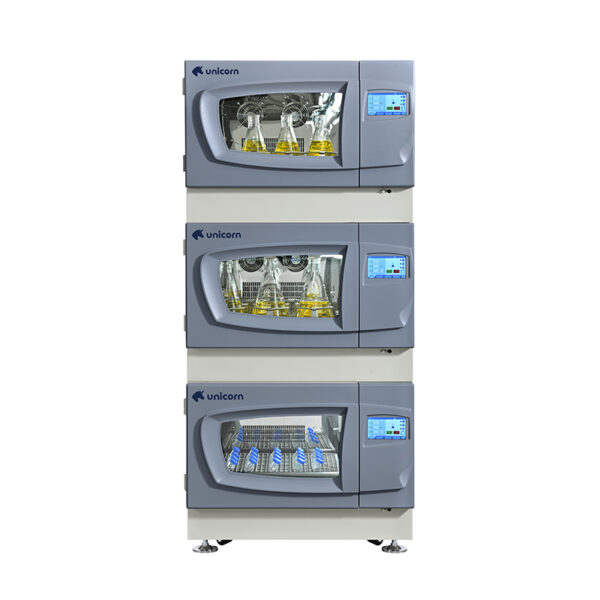

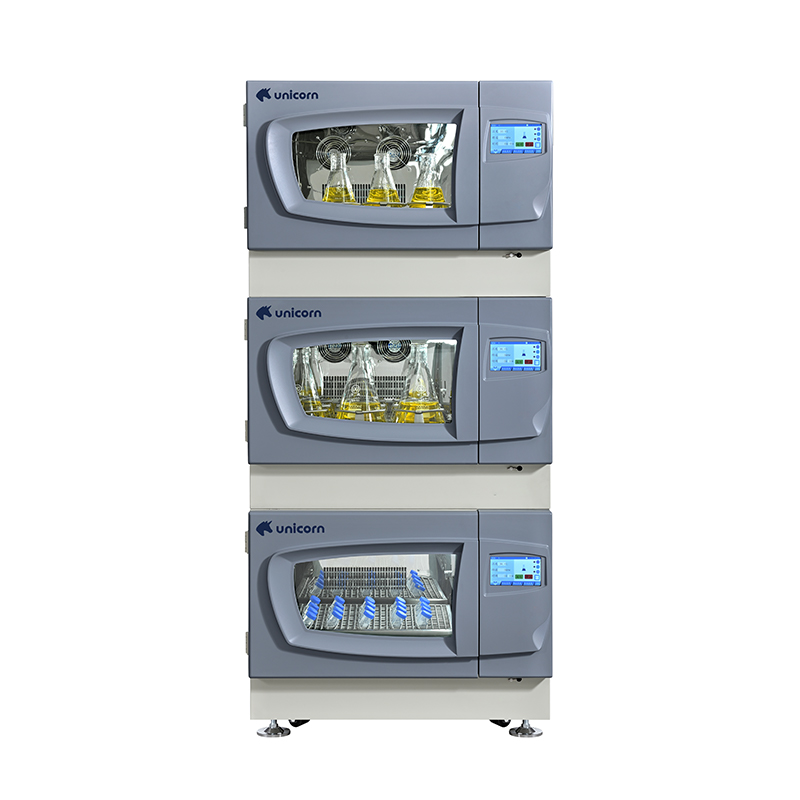

BioGrowth Series Compact Stackable Incubator Shaker

It is used in bacterial culture, fermentation, hybridization, biochemical reactions, enzyme and tissue research , etc. And it has a wide range of applications in medicine, biology, molecular science, pharmaceuticals, food, environmental protection, etc.

Description

1. Streamline aesthetic appearance, mold manufacturing process, simple and generous
2. Seven-inch color touch screen display, multi-parameter display and monitoring, convenient human-computer interaction
3. Flexible placement, can be double-layer or triple-layer stacked, effectively saving lab space
4. Hollow double-layer safety tempered glass door, good thermal insulation performance, good observation of internal samples
5. Single-axis five-dimensional dynamic balance drive technology, with no mechanical friction loss, low noise, low energy consumption, high stability and long service life
6. Selected core components with stable and reliable quality, such as servo motors, variable frequency compressors, imported double-row bearings, ductile iron material movement
7. Optional active humidification, light culture, high-speed oscillation, light-shielding culture, sticky shake plate, remote communication monitoring, gas introduction, 3Q verification and embedded built-in micro printer

Specifications

ModelBG-ST-120
Door opening methodOpen the door from the front
Temperature controlTemperature range4~60℃ (Ambient temperature-18℃, minimum 4℃)
Temperature accuracy±0.1℃
Temperature uniformity≤±0.5℃(@37℃)
Ambient temperature range5~35℃
Temperature editing5 groups/30 segments of curve editing
Rotation controlRotation wayRotary/reciprocating switchable
Rotation speed0~300 rpm
Rotation accuracy±1 rpm
Throw25mm (50mm or 0~50mm adjustable)
Timing range0~9999H/0~9999min
DimensionVolume122 liters
Exterior dimensions (w×d×h)910mm×740mm×640mm
Interior dimensions (w×d×h)605mm×505mm×400mm
Internal usable height380mm
Tray size (w×d)542mm×445mm
Maximum loading capacity3000ml×5, 2000ml×6, 1000ml×12, 500ml×20, 250ml×30
Display7 inches TFT color touchable
ControlP.I.D microcomputer
CirculationForced circulation convection
Drive modeSingle axis balanced drive
HEPA filter0.2um in-line filter
Tray materialHigh-quality aluminum alloy, oxidized surface treatment
Flask clamp materialStainless steel type 304
Chamber materialStainless steel type 304
Decontanmination methodUV sterilization
Illumination lamp8W
UV lamp8W
Motor powerHigh quality servo motor
BearingsOriginal imported double row bearings
CompressorVariable frequency compressor (energy saving 30%)
Heating power800W
Cooling power150W
Motor power150W
Stackable quantity1 layer / 2 layers / 3 layers
Power supply220V±10%, 50/60Hz
Net Weight214KGS

Brochure

BioGrowth Series Compact Stackable Incubator Shaker Brochure (1 download )
